Delabie 547005BE-546412
Self-supporting frame system for WCs with electronic valve.
Изображения
Фотографии товара

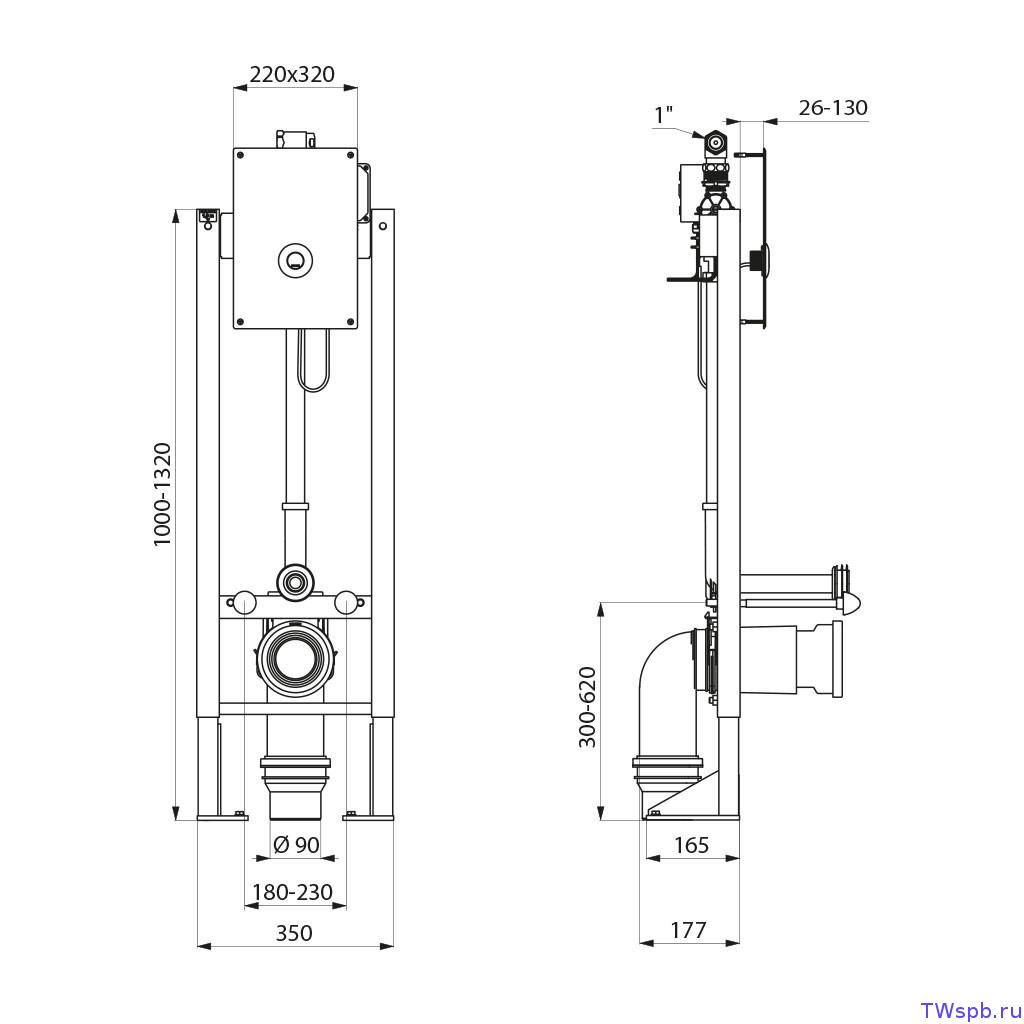

Чертежи
Характеристики
Наличие товара, цену и технические особенности уточняйте у менеджера.
Описание
Self-supporting frame system W. 350mm for wall-hung electronic WCs:
Black powder-coated steel frame.
Fixes to load-bearing floors.
Frame height can be adjusted from 0 - 200mm (with 1m mark).
Ø 32mm flush tube with Ø 55mm connection washer.
Ø 90mm HDPE soil pipe with waterproof seal, with 2 settings positions.
Delivered pre-mounted.
Complies with French standard NF D12-208.
For dry walls 26 - 130mm.
Fitted with TEMPOMATIC F1" electronic direct flush valve:
Stainless steel plate 320 x 220mm.
Shock-resistant infrared presence detection sensor.
Voluntary activation flush when user's hand approaches the sensor or automatically when the user leaves.
Time flow ~7 seconds can be adjusted 3 - 12 seconds.
230/12V transformer.
Stopcock and volume/flow rate adjuster.
Detection distance can be adjusted by the installer.
Technical characteristics: see TEMPOMATIC ref. 463326.
10-year warranty.
